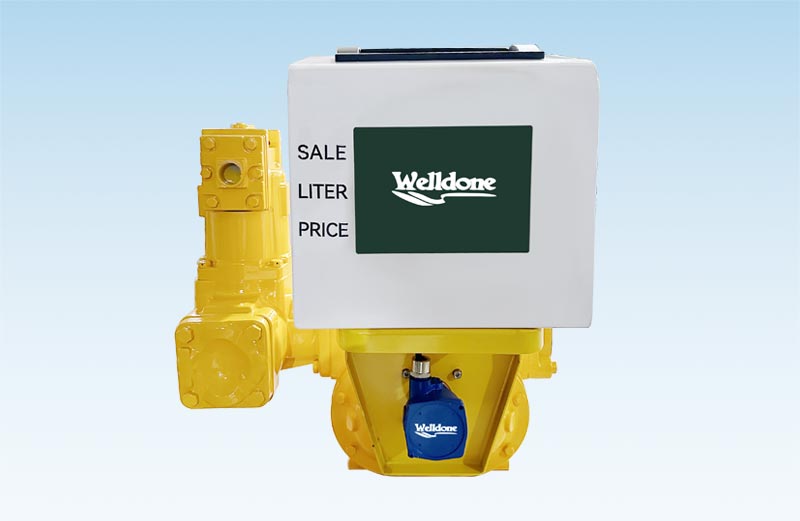

A turbine flowmeter operates on a simple and elegant principle: as oil flows through the meter body, it impinges on the angled blades of a rotor, causing it to spin at a rate proportional to the fluid velocity. A magnetic or optical pickup sensor detects each blade passing, generating a pulse output. By counting the pulses over time and applying the meter's K-factor (pulses per unit volume), the flow rate and totalized volume can be calculated precisely. This technology offers high accuracy, wide flow range, and fast dynamic response, making turbine meters popular in petroleum measurement.
Turbine flowmeters are particularly effective for measuring light to medium-viscosity oils such as diesel fuel, jet fuel, gasoline, and light lubricating oils. At lower viscosities, the fluid's inertia drives the turbine rotor efficiently and the relationship between rotor speed and flow rate remains highly linear. However, as viscosity increases above a certain threshold, the rotor may experience drag that causes it to read low at low flow rates—a phenomenon known as "viscosity-induced error." Manufacturers specify a viscosity range for their turbine meters, and staying within this range is essential for accurate measurement.
In oil flow applications, turbine meters are commonly used in aviation fueling, truck loading terminals, pipeline metering stations, and flow test stands. They are compatible with most petroleum products but should not be used with fluids containing solid particles or abrasive contaminants unless a suitable upstream filter is installed. Modern turbine flowmeters are available with ATEX-certified electronics for use in hazardous classified areas. Two-wire loop-powered transmitters, digital displays, and communication interfaces such as HART and MODBUS make turbine meters easy to integrate into modern process control and SCADA systems.
