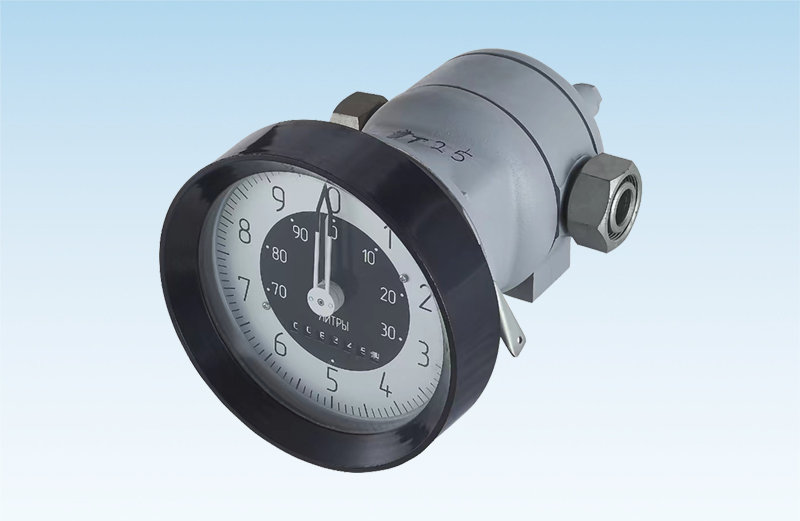

Troubleshooting a faulty oil flowmeter begins with a systematic approach to identifying whether the problem lies with the meter itself, the installation conditions, the associated electronics, or the measurement system as a whole. The first step is to compare the flowmeter reading with independent evidence—such as tank level changes, batch weights, or parallel meter readings—to confirm that a measurement error actually exists. Visual inspection of the meter, connections, and surrounding pipework can reveal obvious issues such as leaks, physical damage, or incorrect installation.
Once a measurement discrepancy is confirmed, the troubleshooting process should investigate the most common causes in order of likelihood. For positive displacement and turbine meters, check for air entrainment in the oil—a classic cause of over-reading—by listening for unusual sounds or observing the flow computer for erratic pulses. Inspect the upstream filter for blockage, which could cause an unexpectedly low reading due to reduced flow rate or high pressure drop. Mechanical wear in gears or turbine blades can cause the meter to read low over time; this is typically confirmed by field proving against a reference standard. Calibration data from previous provings can establish a trend of deteriorating accuracy.
For electronic faults, check the sensor output signal (typically a pulse or frequency) using an oscilloscope or pulse counter to verify it is clean and consistent. Damaged signal cables, corroded terminals, or failed sensors produce erratic or zero signals. Reconfigure the flow computer inputs and check for alarm messages that may indicate signal faults. For ultrasonic meters, dirty transducers, poor coupling, or internal deposits can weaken the acoustic signal—check the signal strength or gain readings in the transmitter diagnostics. Document all findings and corrective actions taken, and update the meter's maintenance record to support future troubleshooting and predictive maintenance planning.
