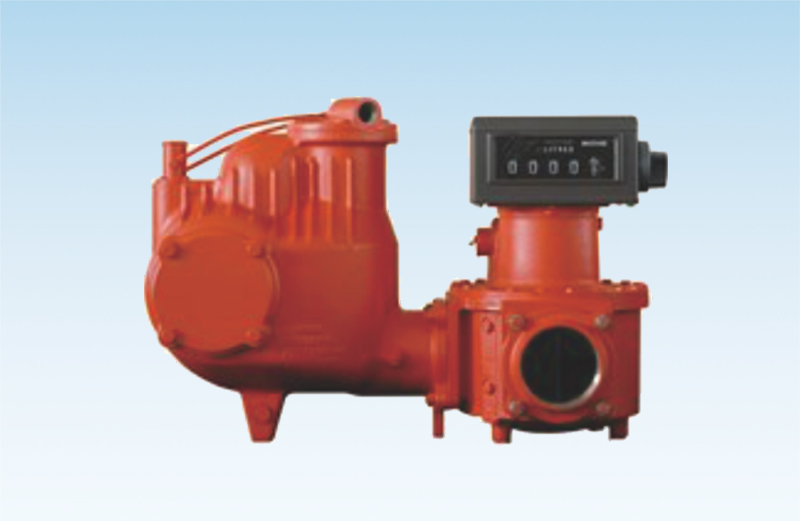

A gear meter is a specific type of positive displacement flowmeter that uses precision-machined gears—typically oval, helical, or spur gears—as the measuring elements. As oil flows through the meter, it forces the gears to rotate, trapping fixed volumes of fluid between the gear teeth and the meter housing with each revolution. The rotation is detected by a magnetic or optical sensor, and the resulting pulses are counted to calculate the accumulated volume and instantaneous flow rate. Gear meters are highly regarded for their precision, repeatability, and compatibility with a wide range of oil types.
The oval gear meter is the most common gear meter design for oil applications. Its two elliptical gears intermesh to form sealed crescent-shaped chambers that fill with oil at the inlet and empty at the outlet with each rotation cycle. The constant meshing of the two gears provides smooth, nearly pulsation-free flow and ensures consistent measurement across a wide range of flow rates. Helical gear meters use spiral-cut gears that provide even smoother flow and are particularly suited for high-viscosity oils or applications where pulsation must be minimized. Spur gear meters are simpler in design but produce slightly more pulsation due to the square engagement of their teeth.
Compared to turbine flowmeters, gear meters are significantly more tolerant of high-viscosity oils and do not require a minimum fluid velocity to operate accurately. They are less susceptible to swirl and uneven flow profiles than turbine meters, making them less demanding in terms of straight pipe run requirements. However, gear meters have a lower maximum flow rate than turbine meters of the same pipe size and are sensitive to overspeed damage. They also require more maintenance than solid-state meters (ultrasonic, Coriolis) due to their moving parts. Nevertheless, for many industrial oil measurement applications—particularly involving lubricating oils, fuel oils, and hydraulic fluids—gear meters provide an excellent balance of accuracy, durability, and cost-effectiveness.
