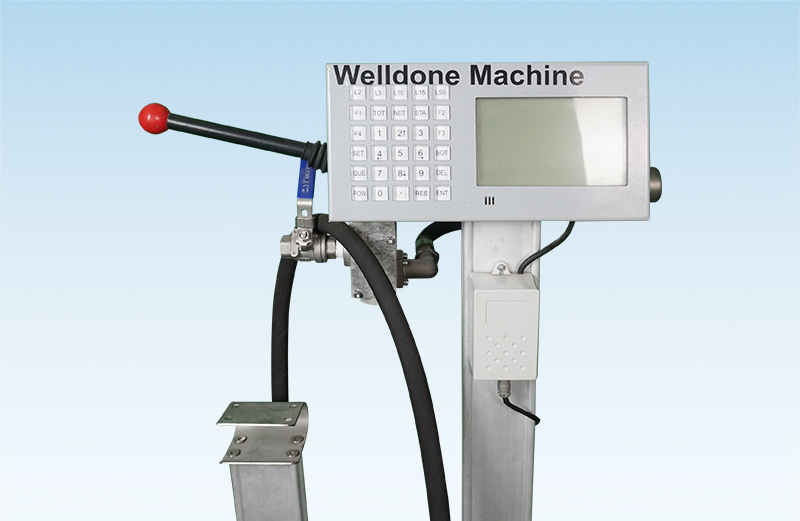

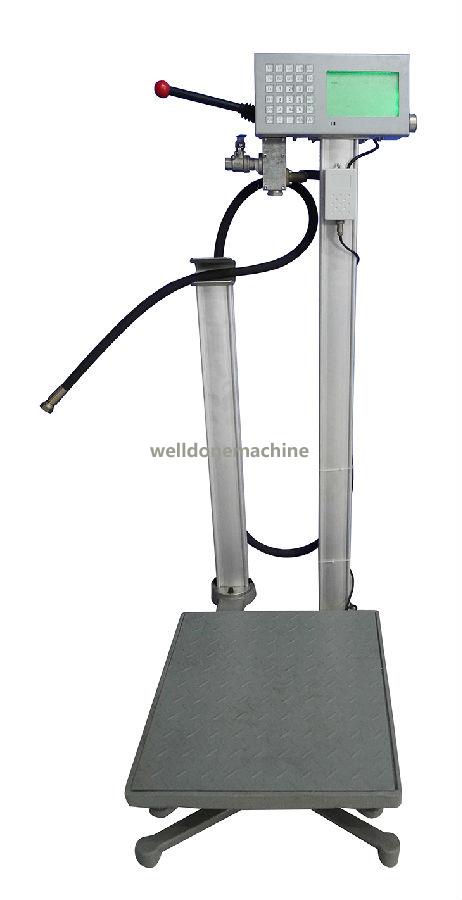

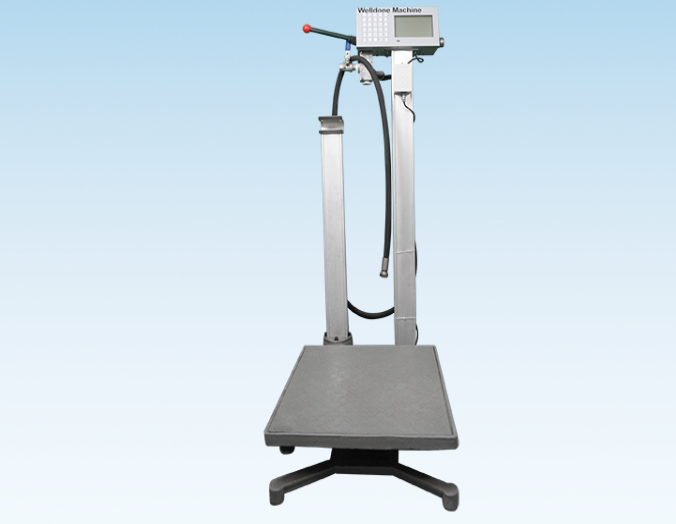

LPG FILLING SCALE
Protectiongrade: IP65 (panel type)
Maxweighing:150kg
Level ofaccuracy: OIML III grade
Workingtemperature: -10 ~ 40 ℃
Humidity:10%~ 95% (non-condensing)
Rated voltage:24V DC
Max power :19.5W
Gas pressure1.0 ~ 1.6MPa
weighingplatform table size: 420* 550mm
Proof mark:Exd (ib) ib II BT4
| Model | LPG-2EX |
| Power Supply | Single-phase 220V 50Hz |
| Power | 30W |
| Minimum Capacity | 120kg |
| Minimum Capacity | 1kg |
| Division Value | 50g |
| Accuracy Class | 3 |
| Operating Temperature | -40℃ to 50℃ |
| Operating Humidity | Relative Humidity ≤ 90% |
| Operating Pressure | 2.2MPa |
| Trade-off Platform Size | 420mm x 530mm |
| Explosion-proof Mark | 420mm x 530mm |
