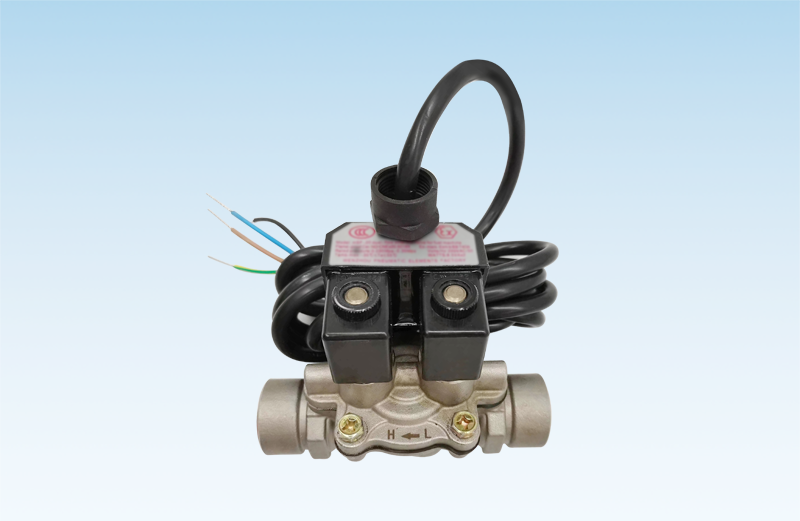

Precise action,reliable,long service.Diaphragm of main valve has capability of anti-corrosion and resisting-40℃ low temperature.Special stainless steel magnetic material never rusts and generates remanent magnetism Class floop with good insulation Anti-Explosion Class:EXD II Bt4 When main valve shuts off,work pressure 0.3-0.4MPa, flow rate is 3-3.5L/min
Using condition
Height: ≤2000m
Temperature: -35℃ ~ +55℃
Humidity: ≤95% (+25℃)
No shaking and impact place.
Flexible in the rated volt 85%~110% range, it can shut off normally.
直径 Diameter | 20mm | 25mm | 40mm | 中等 Medium | 汽油、柴油、煤油 Petrol, diesel, kerosene |
大流量 Big flow L/min | ≥50 | ≥100 | ≥250 |
|
|
小流量 Small flow L/min | 2.5~5.5 | 3.5~6.5 | 3.5~6.5 | 额定电压 Rated voltage | AC220V/50HZ
AC230V/60HZ
AC110V/50HZ
AC115V/60HZ DC24V |
压力 Pressure | 0.35MPa |
|
| 额定功率 Rated power | 2 × 7W |
|
|
|
| 温度 Temperature | -35°C~+55°C |
