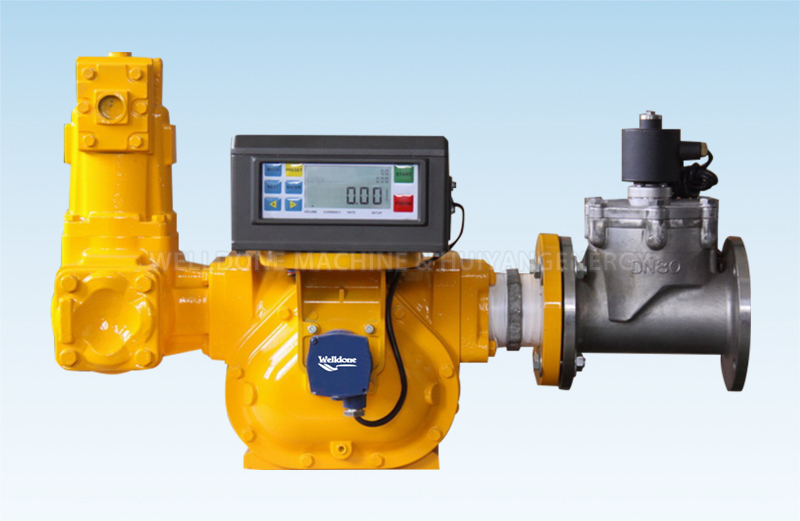

Straight pipe runs upstream and downstream of an oil flowmeter play a critical role in ensuring measurement accuracy by allowing the fluid velocity profile to fully develop before entering the meter. When oil flows through fittings such as elbows, tees, valves, or reducers, it develops swirl and asymmetric velocity profiles that persist for many pipe diameters downstream. If a flowmeter is placed too close to these disturbances, the non-uniform flow entering the meter can introduce systematic measurement errors. For precision measurement, providing adequate straight pipe runs is one of the most fundamental installation requirements.
The amount of straight pipe required varies by meter technology. Turbine and ultrasonic flowmeters are the most sensitive to flow profile distortions and typically require 10 to 30 pipe diameters of straight run upstream and 5 pipe diameters downstream, depending on the type of upstream fitting. Positive displacement meters such as oval gear types are much less sensitive to upstream flow conditions and may only need 5 diameters or less. Coriolis meters are generally insensitive to flow profile because their measurement principle is based on mass inertia rather than velocity profile, giving them the most flexibility in tight installation spaces.
When space constraints make it impossible to provide the required straight pipe runs, flow conditioners—devices that break up swirl and redistribute the velocity profile—can be installed upstream of the meter to reduce the required straight run length significantly. These devices create a pressure drop but greatly improve measurement accuracy for sensitive meter types. Another option is to use a flowmeter that inherently has low sensitivity to flow profile, such as a Coriolis or oval gear meter. Consulting the meter manufacturer's installation guidelines and, where available, flow simulation tools can help optimize the installation design for both accuracy and space efficiency.
