Strainers and filters play a critical protective role in oil flowmeter systems by removing solid particles, debris, and contaminants from the oil stream before they can reach and damage the delicate measuring elements of the flowmeter. Most flowmeters—especially positive displacement and turbine types—are sensitive to solid contamination. Even small particles of rust, scale, weld slag, or dirt can score gear surfaces, damage turbine rotor bearings, or block meter orifices, causing premature wear, measurement errors, or complete meter failure. Installing appropriate upstream filtration is one of the most important steps in ensuring long-term flowmeter reliability.

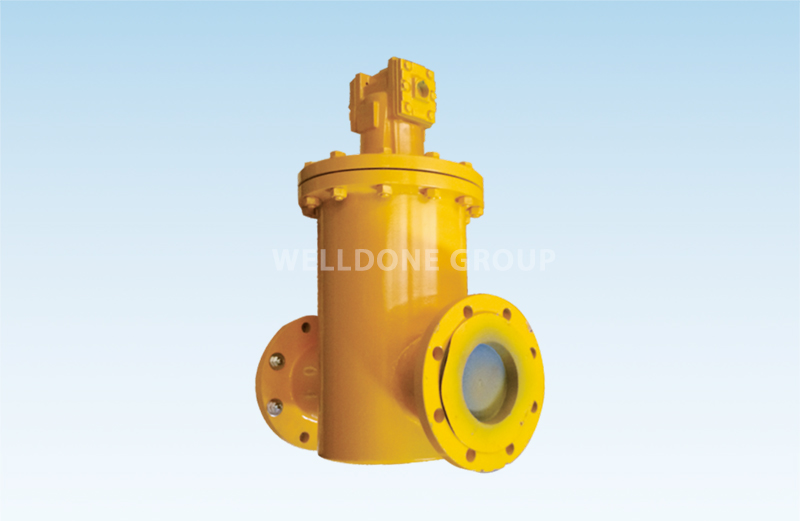

Strainers are typically installed immediately upstream of the flowmeter, with a mesh size fine enough to exclude particles larger than the meter's tolerance. A common guideline is to use a strainer with a mesh size approximately one-quarter to one-half of the tightest internal clearance in the meter. For oval gear meters, this typically means a 0.5mm or finer mesh strainer. For turbine meters, a 0.8mm to 1.2mm strainer is usually specified. The strainer should be installed with an isolation valve arrangement that allows it to be cleaned without shutting down the entire system. Many strainers are equipped with a pressure differential indicator that shows when the strainer is becoming blocked and needs cleaning.
In addition to protecting the flowmeter, upstream filtration also protects other components in the system such as control valves, pumps, and instrumentation. In new system commissioning, it is particularly important to clean flush the pipework before startup to remove construction debris, as the high concentration of particles in new pipework can rapidly clog strainers and damage meters. Filter elements should be inspected and replaced at regular intervals, or more frequently if the pressure differential across the filter rises faster than normal, indicating higher-than-expected contamination levels. Maintaining the upstream filtration equipment in good condition is as important as maintaining the flowmeter itself for ensuring overall system reliability.
